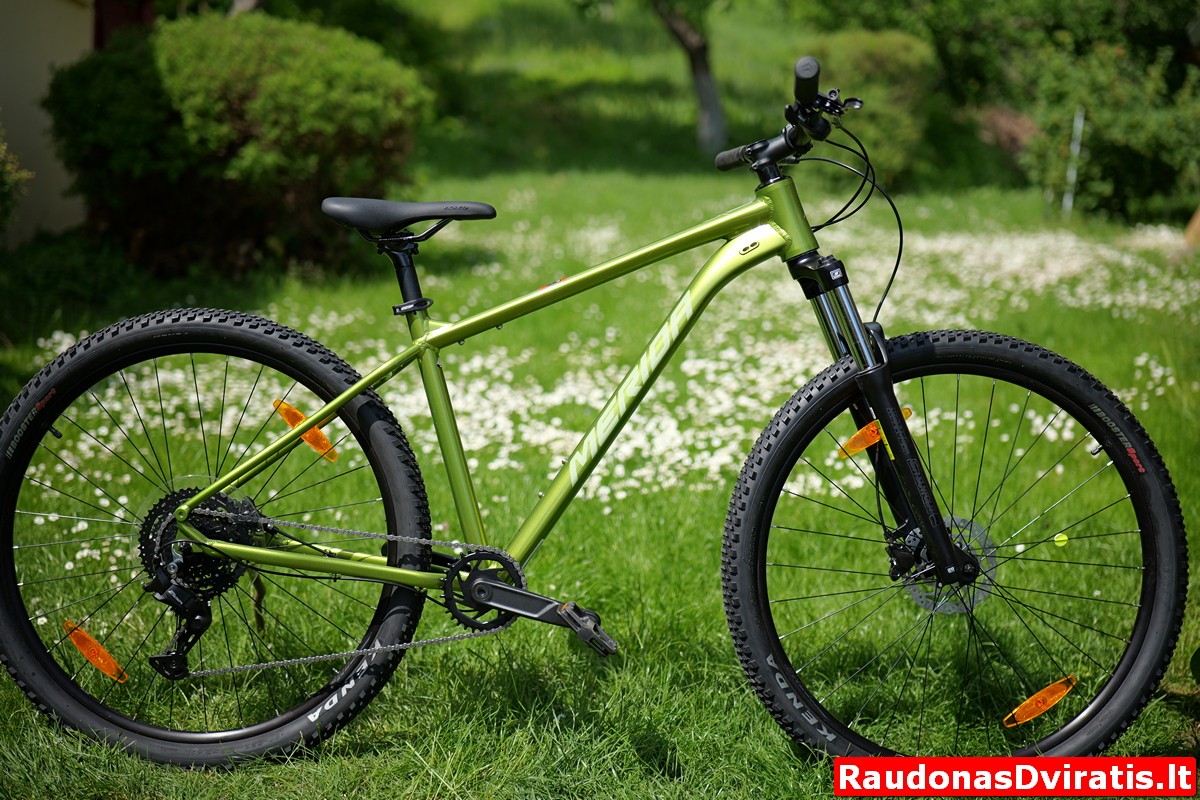

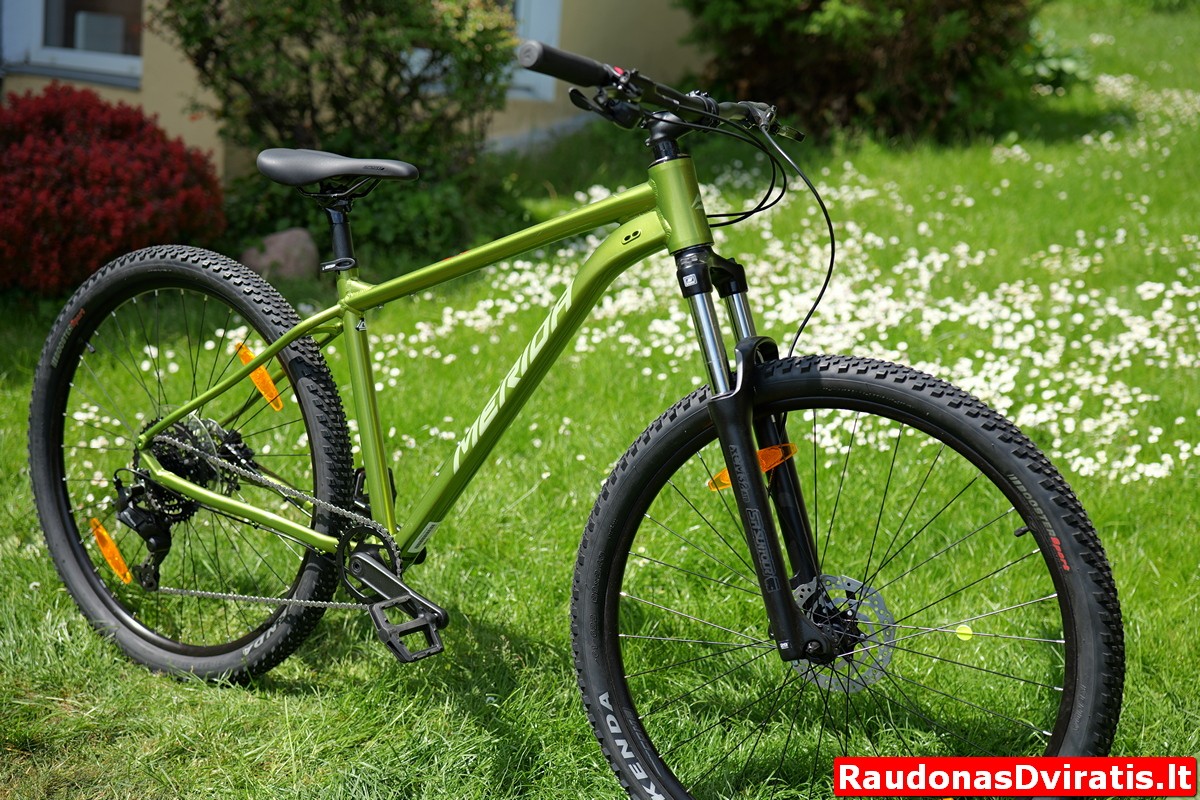

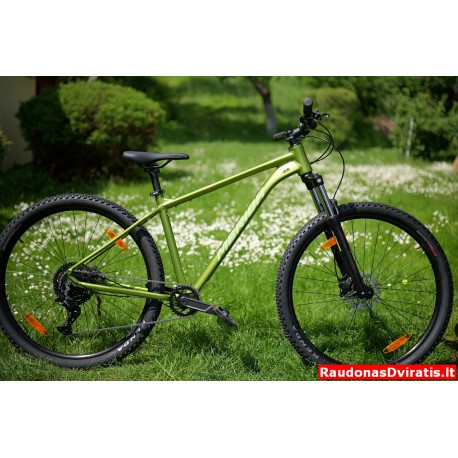

Bicycle technical specifications
Frame and suspension
Frame:
BIG.NINE TFS V; aluminium; 29; 135x9mm; BSA

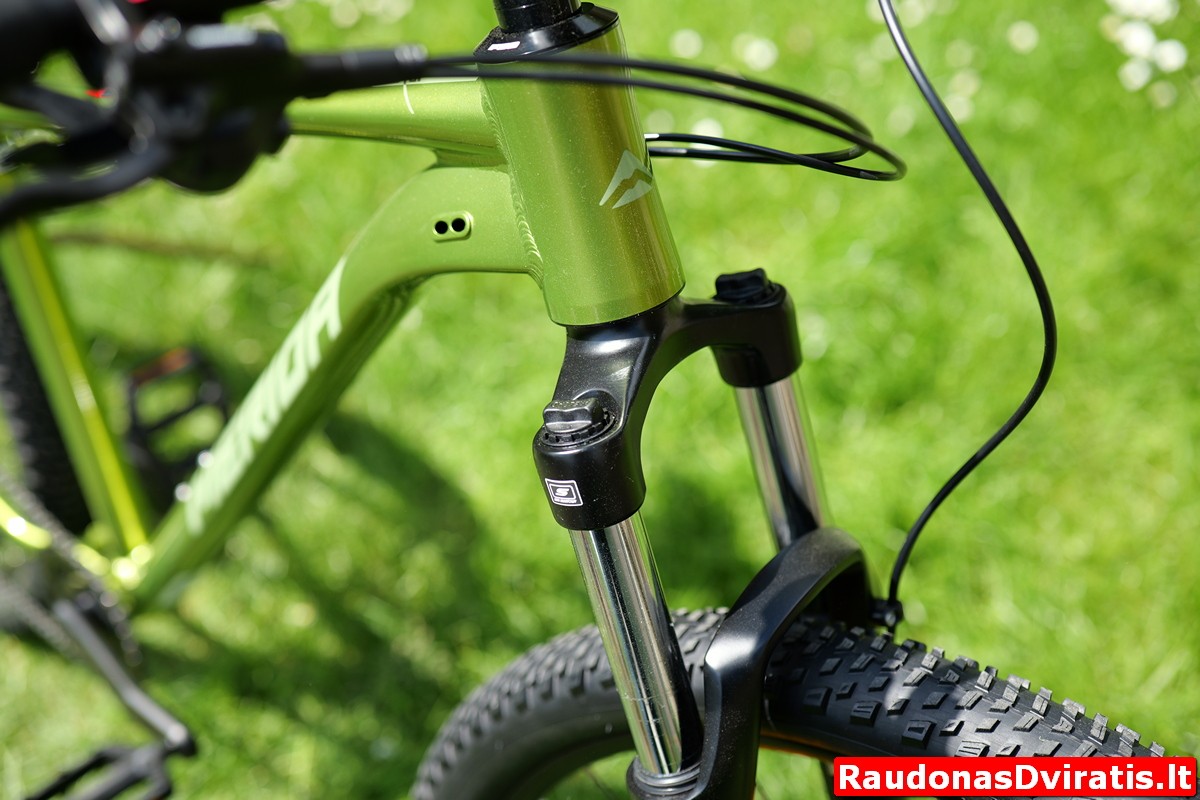

Fork:
SR Suntour XCM32 NLO; Coil; 120 STR; lockout; 29x2,4" maximum wheel size
Drivetrain
Drivetrain groupset:
Shimano Essa
Speeds:
8
Speeds:
1x8

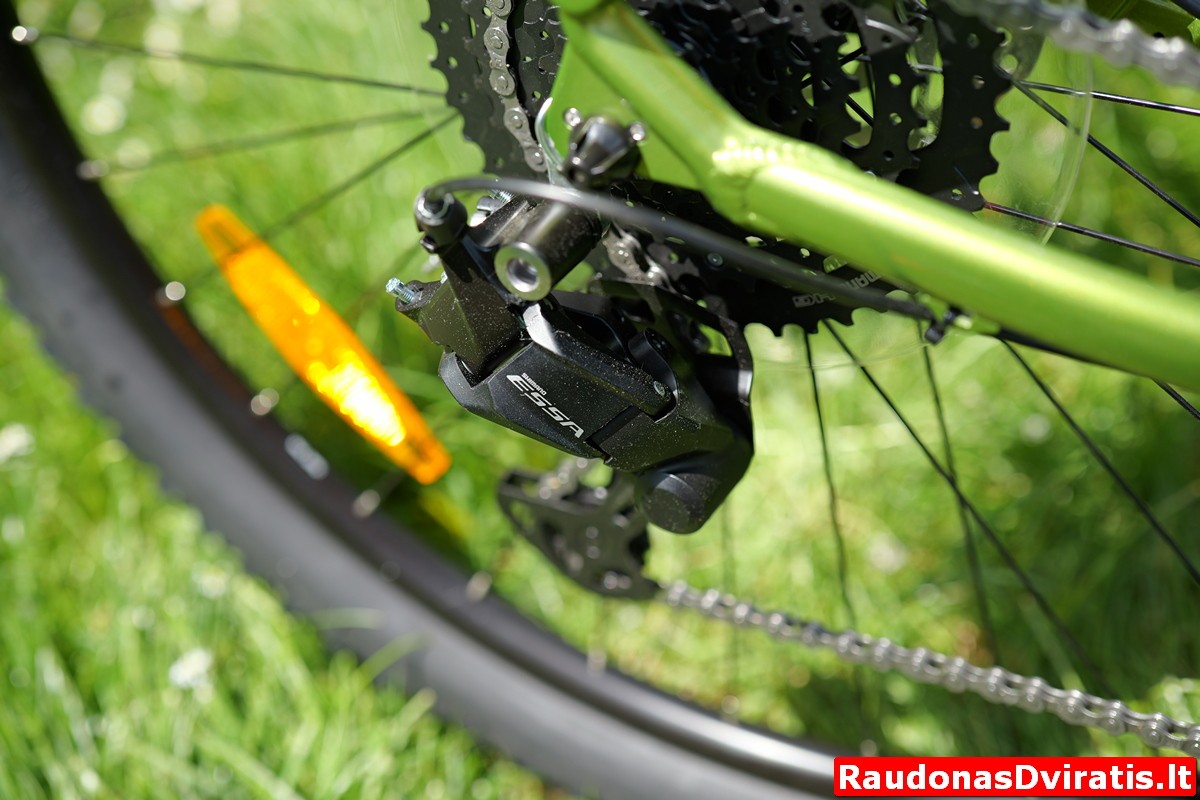

Rear derailleur:
Shimano Essa RD-U2000-8; GS
Rear shifter:
Shimano Essa SL-315-8R

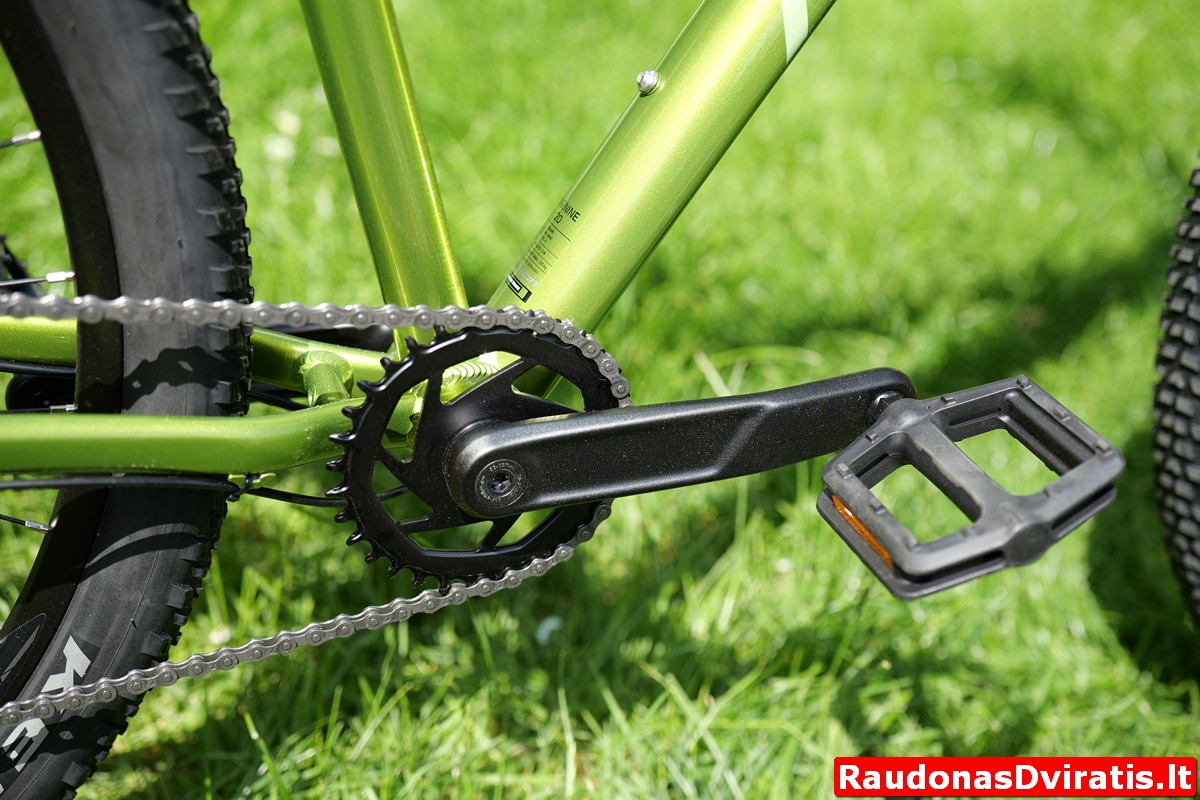

Crankset:
Prowheel Epro-MD26S; 32T; aluminium, Crank size: S: 165mm, M/L/XL/XXL: 170mm

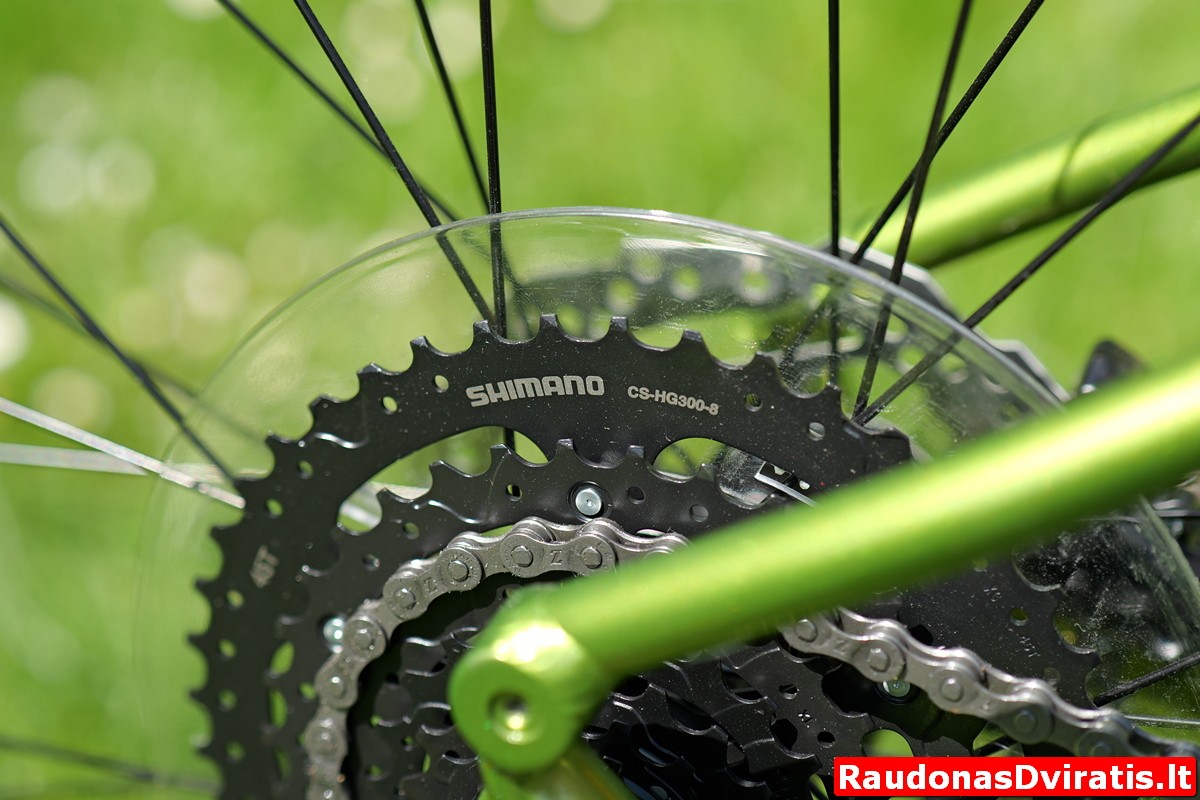

Cassette:
Shimano CS-HG300-8; 11-45T; 8-speed
Chain:
KMC Z8.3
Bottom bracket:
Shimano UN101 LL123
Pedals:
VP VPE 536
Brake system

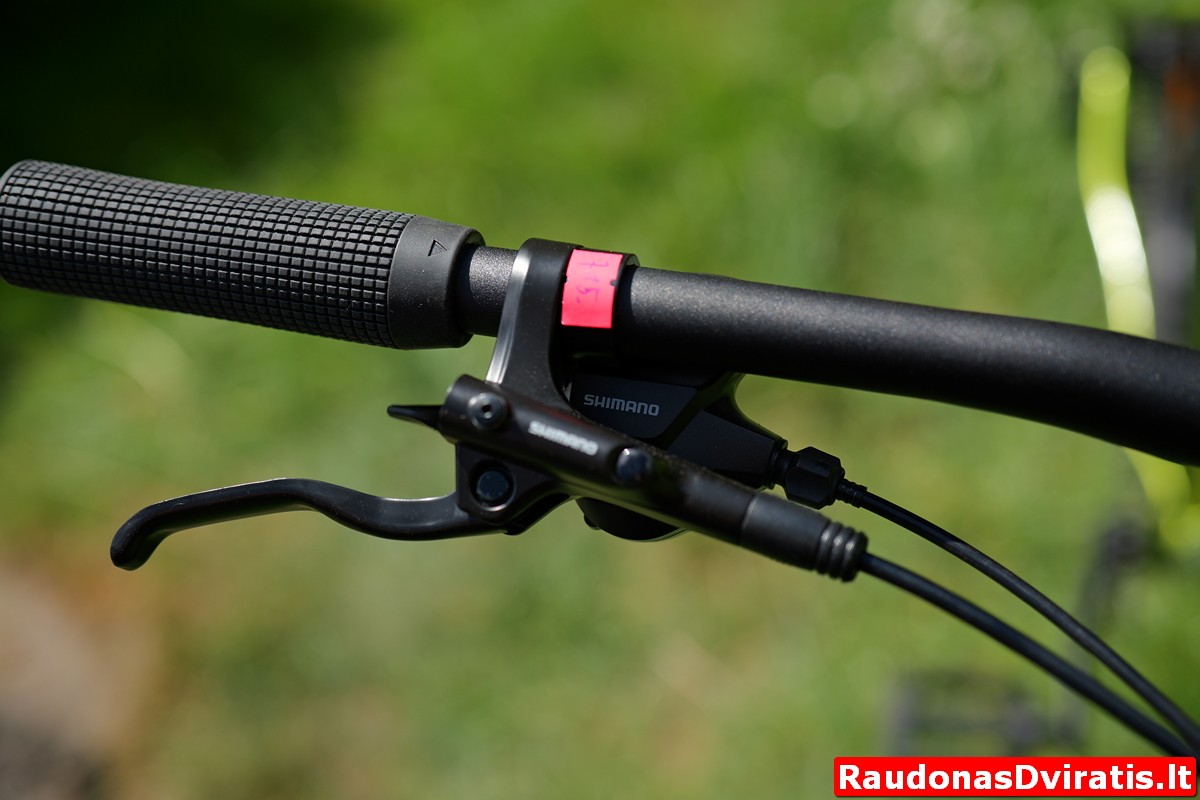

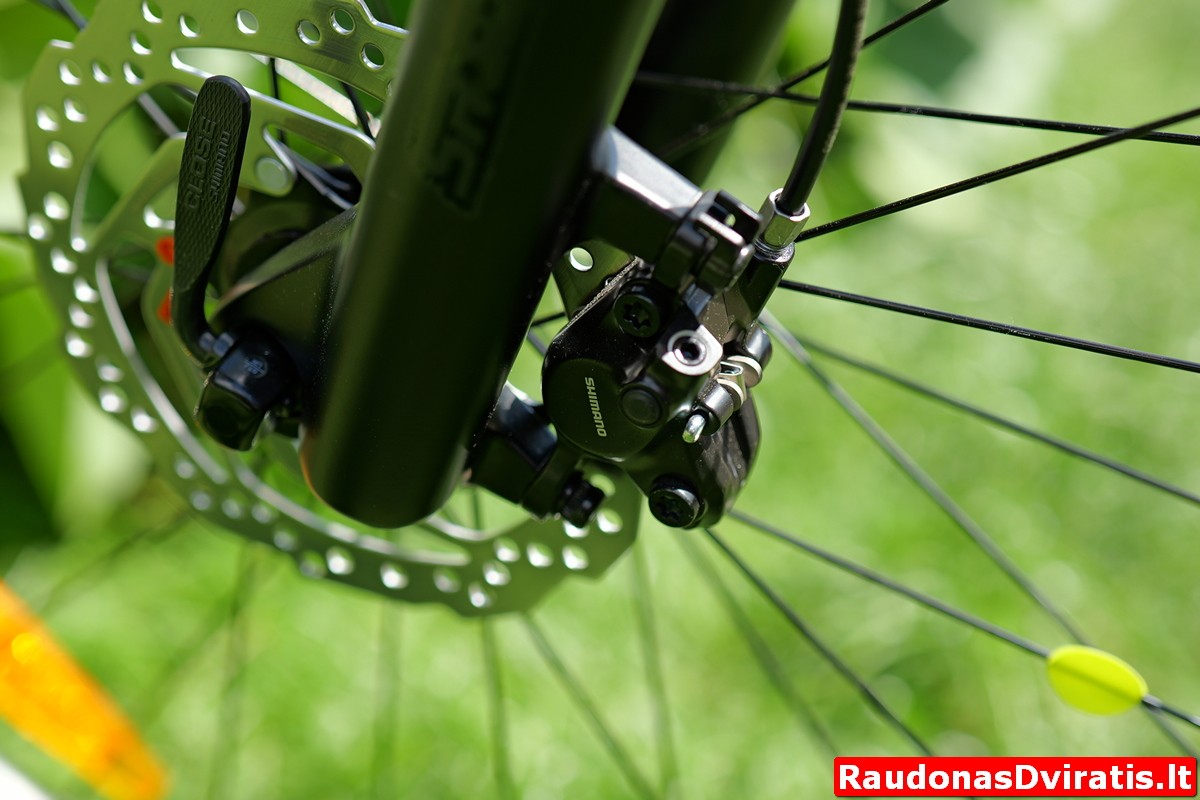

Front brakes:
Shimano MT200; hydraulic disc

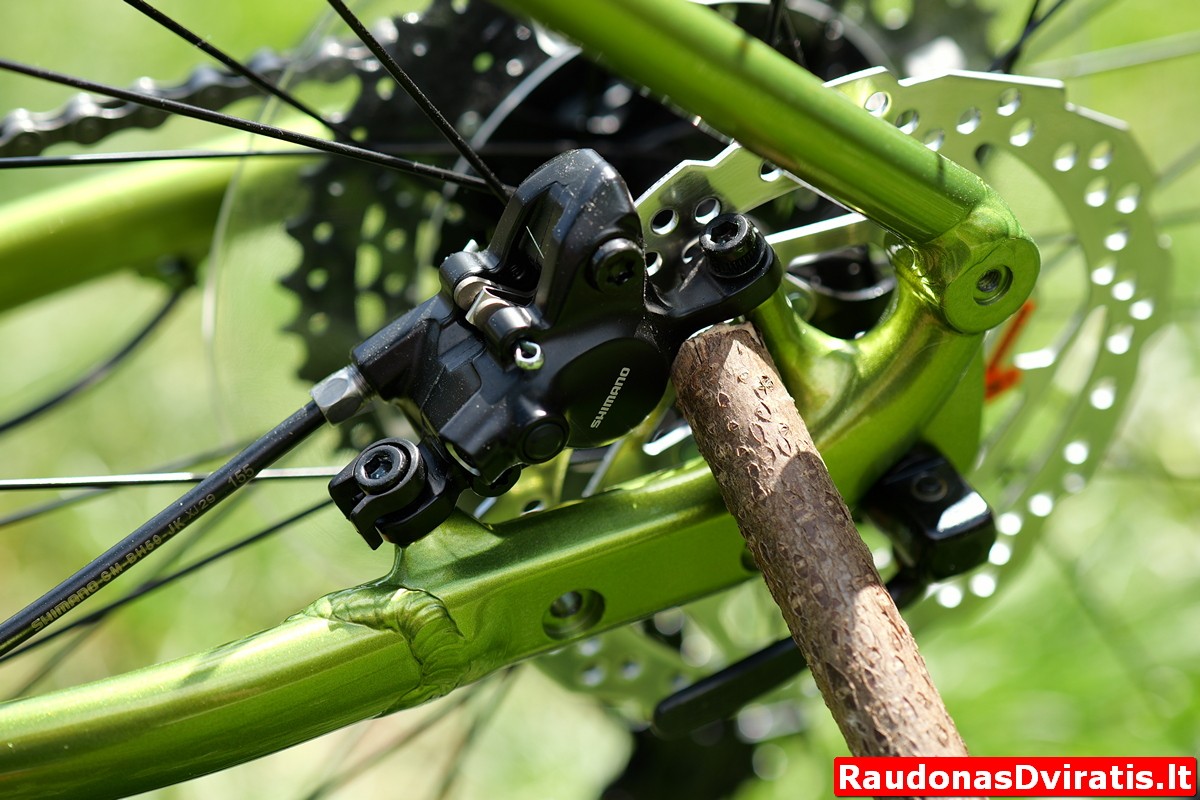

Rear brakes:
Shimano MT200; hydraulic disc
Brake discs:
Front: Shimano RT10; 160 mm, Rear: Shimano RT10; 160 mm
Cockpit
Handlebar:
MERIDA CC; aluminium; 15mm rise; S: 720mm length; M/L/: 740mm length; XL/XXL: 760mm length
Stem:
MERIDA COMP CC; aluminium; 31.8mm handlebar center diameter; 7° angle, Length: S: 50mm, M/L:60 mm, XL/XXL: 70 mm
Grips:
MERIDA EC
Headset:
FSA NO.55R/57SC/57B, Compressor: FSA-TH-874-1, Spacers: 10mmx2
Wheels
Wheel size:
29
Rims:
MERIDA COMP CC; 20mm width; aluminium

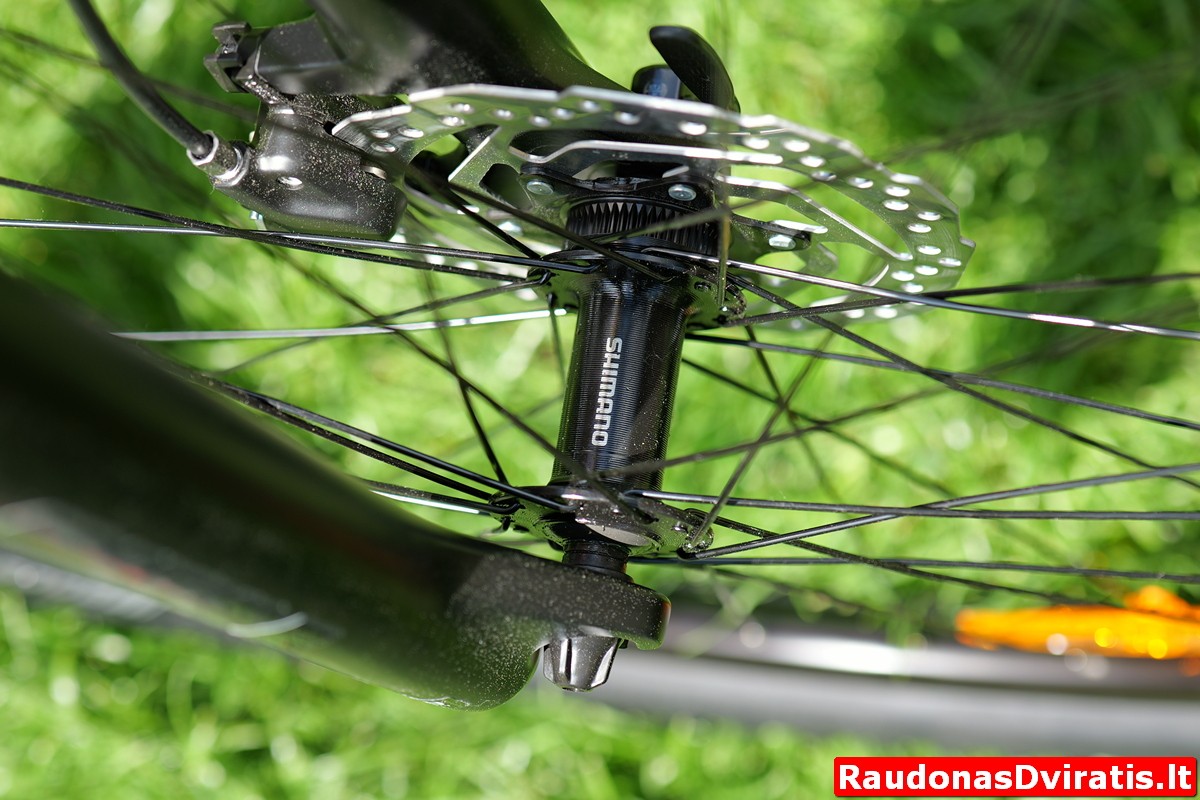

Front hub:
Shimano TX505; 100x9mm; 32H; Centerlock

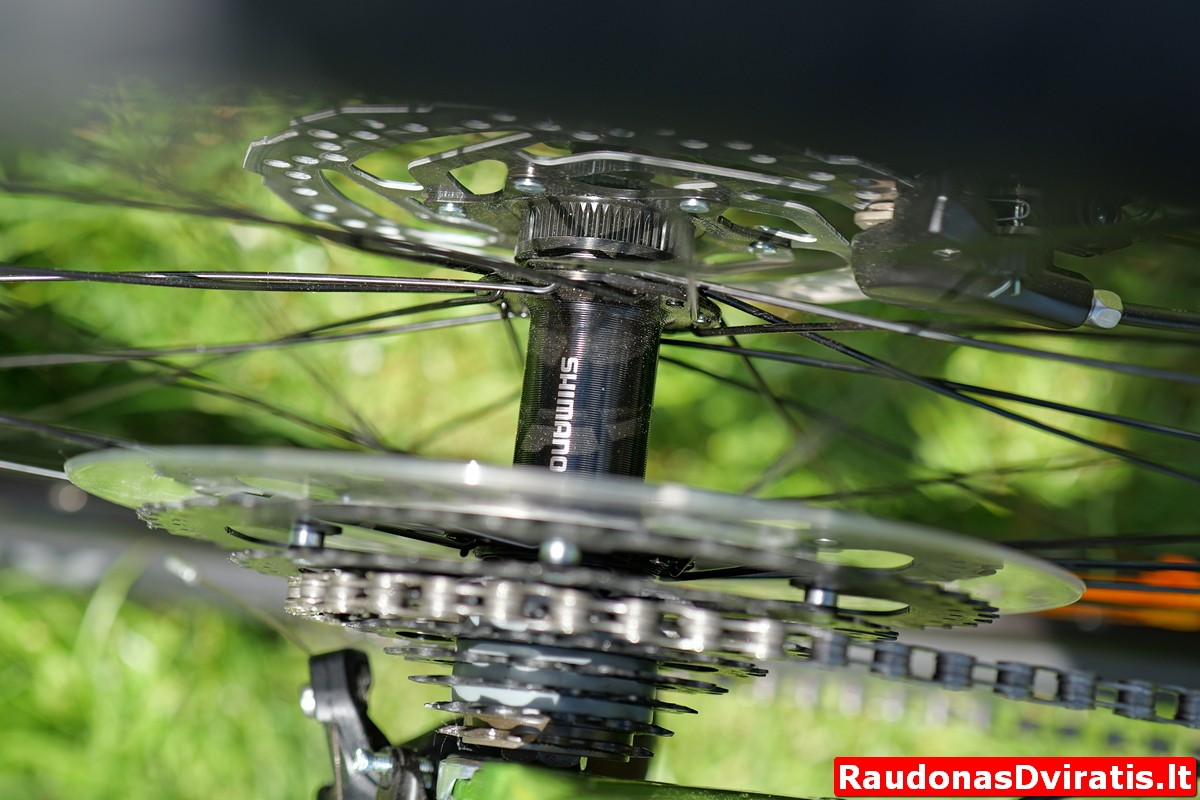

Rear hub:
Shimano TX505; 135x9mm; 32H; Centerlock
Front tire:
Kenda Booster; 29x2.4"
Rear tire:
Kenda Booster; 29x2.4"
Tubes:
29 x 2.4 A.V
Spokes:
Black steel
Saddle and components
Saddle:
MERIDA Sport
Seat post:
MERIDA COMP QR
Seat post clamp:
MERIDA COMP CC; aluminium; 30.9mm diameter; 0mm setback
Accessories
Bell:
YWS-Alloy
Weight and dimensions
Weight:
14.4 kg
